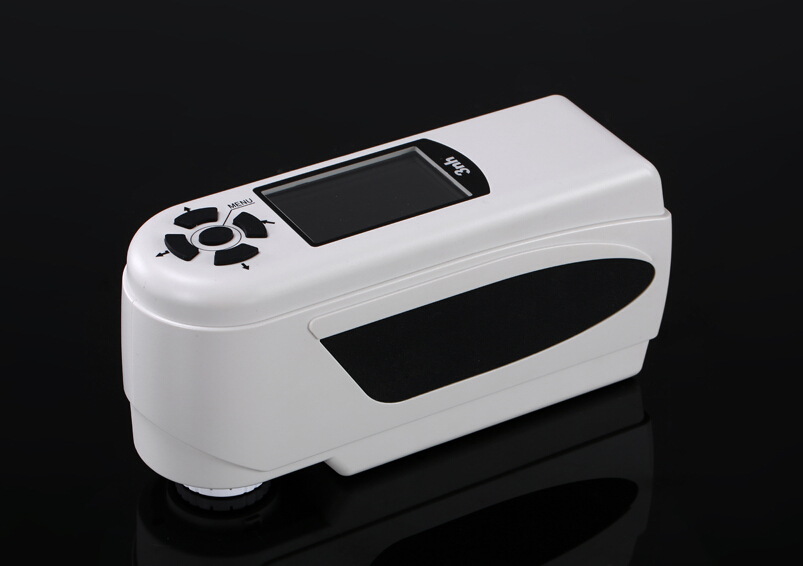

NH310 Colorimeter/Color Reader/Color Difference Meter
3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
With 8mm and 4mm two measurement apertures, NH310 colorimeter is the most popular colorimeter used in fabrics, paper, plastic parts, building materials. Double locating (Camera locating and Illumination locating) helps measure kinds of different shape samples, such as small size, or curve. The standard configuration software CSCQ3 is able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.
NH310 Colorimeter Product Specification:
| NH300 | NH310 |
Illuminating/Viewing Geometry | 8/d | 8/d |

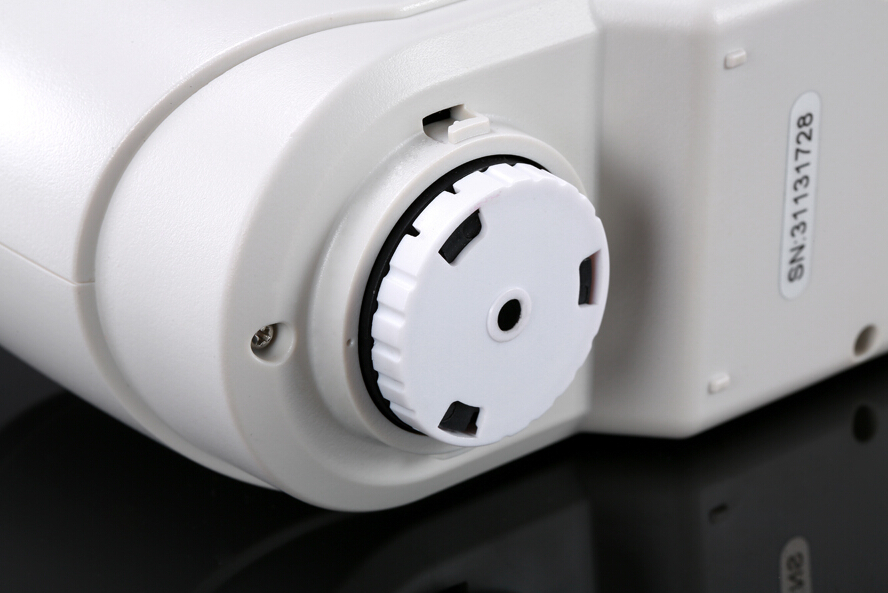

Measuring Aperture | Φ8mm | Φ8mm/Φ4mm |
Detector | Silicon photoelectric diode | Silicon photoelectric diode |
Color Space | CIEL*a*b*C*h* CIEL*a*b* | CIEL*a*b*C*h* CIEL*a*b* CIEXYZ CIERGB CIEL*u*v* CIEL*C*h Yellowness & Whiteness Color Fastness |
Color Difference Formula | △E*ab △L*a*b △E*C*h | △E*ab △L*a*b* △E*C*h* △ECIE94 △Ehunter |
Light Source | D65 | D65 D50 A |
Light Source Device | LED blue light excitation | LED blue light excitation |
Errors Between Each Equipment | ≤0.40ΔE*ab | ≤0.40ΔE*ab |
Storage | 100pcs standards 20000pcs samples | 100pcs standards 20000pcs samples |
Repeatability | Standard deviation within ΔE*ab 0.07 Average of 30 measurements of standard white plate | Standard deviation within ΔE*ab 0.06 Average of 30 measurements of standard white plate |
Weight | 500g | 500g |
Dimension | 205×70×100 mm | 205×70×100 mm |
Power source | Rechargeable lithium-ion battery 3.7V@3200mAh | Rechargeable lithium-ion battery 3.7V@3200mAh |
Lamp Life | 5 years, more than 1.6 million measurements | 5 years, more than 1.6 million measurements |
Charging Time | 2 hours (first time 8 hours--100% electricity) | 2 hours (first time 8 hours--100% electricity) |
Measuring Times Before Recharging | more than 3000 times | more than 3000 times |
Operating Temperature/Humidity Range | -10~40℃, relative humidity 0~85% with no condensation | -10~40℃, relative humidity 0~85% with no condensation |

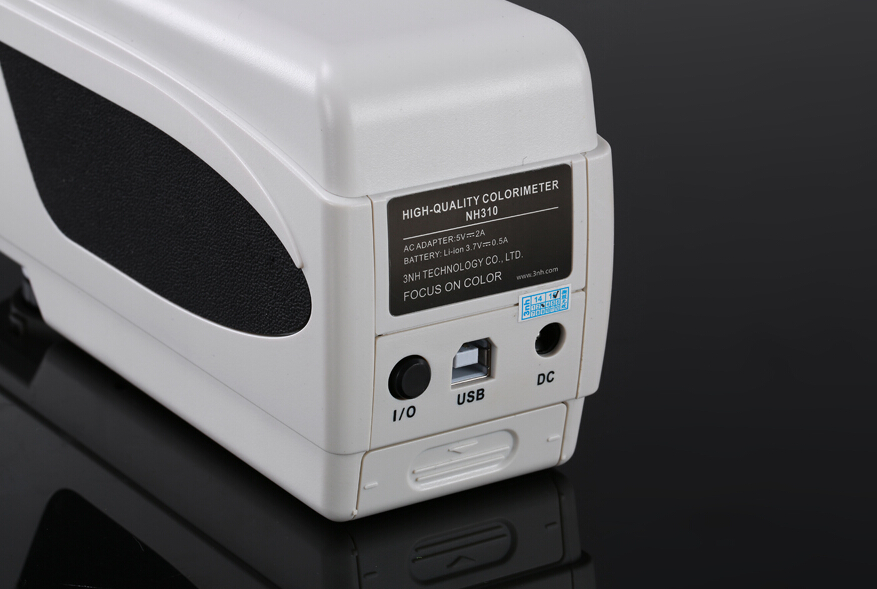

Data Interface | USB | USB |
Extended Aperture (optional) | - | Φ8mm extended aperture, available for measuring concave surface |
Printer (optional) | Miniature thermal printer | Miniature thermal printer |
